Built for long-distance hauling, the Auman GTL is has a modern exterior with advanced safety & fuel efficiency systems, which make for an unforgettable ride.
Powered by Cummins or Weichai engines, the Foton GTL is among Foton’s most immensely popular and best-selling line of heavy-duty trucks.

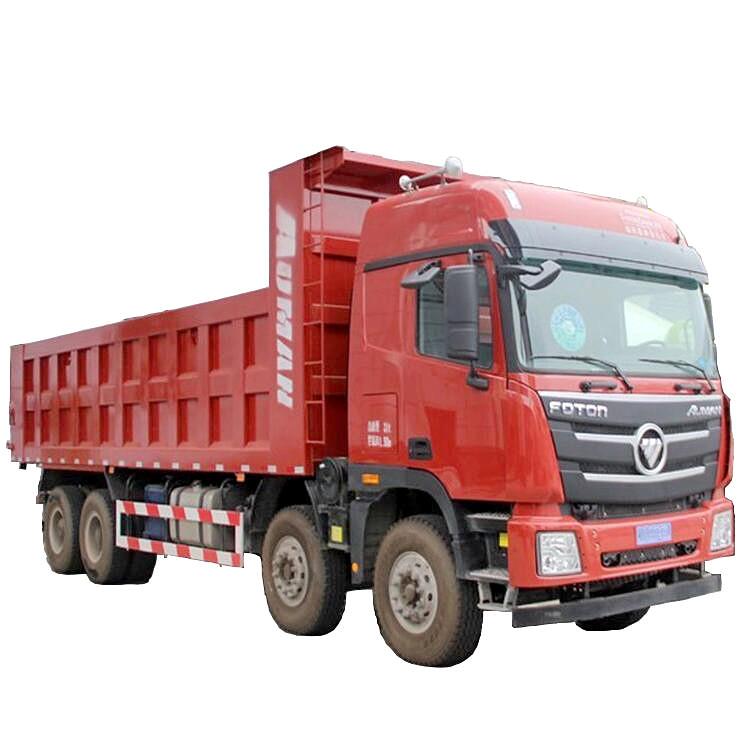

Foton Auman GTL 8x4 Dump Truck Price - Foton Commercial Vehicles
Foton Auman GTL 8x4 Dump Truck Price - Foton Commercial Vehicles
Foton Auman GTL 8x4 Dump Truck Price - Foton Commercial Vehicles
Drive type: 8x4
Wheel base(mm): 1800+4700+1350
Overall dimension(mm): 11460*2495*3580
Curb weight(Kg): 15385
Load capacity(Kg): 40000
Cabin: Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C
Engine:
Model: ISGe5-400
Max.output (kw/HP): 294/400
Max.torque (N•m): 2100@1000RPM
Displacement (ml): 11800
Emission standard: Euro V
Gear box: 12JSD200T,manual,12 forward ＆2 reverse gears
Driving axle: Load capacity 18000Kg
Front axle: Steering axle, load capacity 6500+6500Kg
Quantity of leaf spring: 10/10/12
Standard configuration:
Air suspension seat
Seat heater
Lumbar support to the driver
Adjustable steering wheel
Safety:
Three points safety belt
Automatic clearance adjustment arm,tachometer
Service brake: Dual circuit compressed air brake
Parking brake: Spring energy, compressed air operating on rear wheels
ABS: Provided
Chassis:
Big tool box
Reinforced rim (with HQ mark)
Three in one lock (Ignition switch, door and fuel tank)
Type specification: 12.00R20 18PR
Number of tyres: 12+1
Max.vehicle speed(km/h): 90
Box dimension(mm): 8600X2300X1500
1. Reliable Transmission
FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.
2. Powerful
Foton auman dump truck come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All Foton GTL dump trucks meet the requirements of harsh off-highway dump truck working conditions, with power output ranging from 270-440 hp. Foton GTL dump trucks feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.
3. High Payload Capacity of Frame
Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. Foton auman GTL dump truck has a higher load capacity than other similar in-class trucks.
4. Large Clearance
Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.
5. High Payload Capacity of Suspension
Suspension is strengthened with gusset plate to reduce frame flex.
Double U-Bolts are used to support the higher load.
Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.
6. Mature Powertrain
Foton Auman GTL dump trucks are equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. Foton dump truck price has proven reliable on the market and are a favorite choice among customers. Foton dump trucks are high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.
