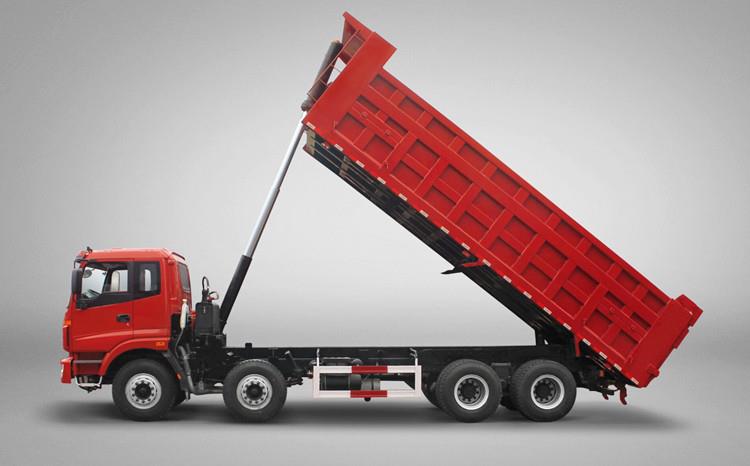

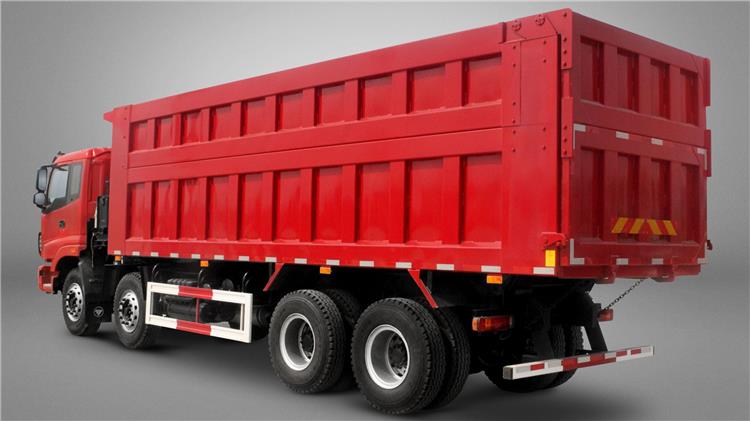

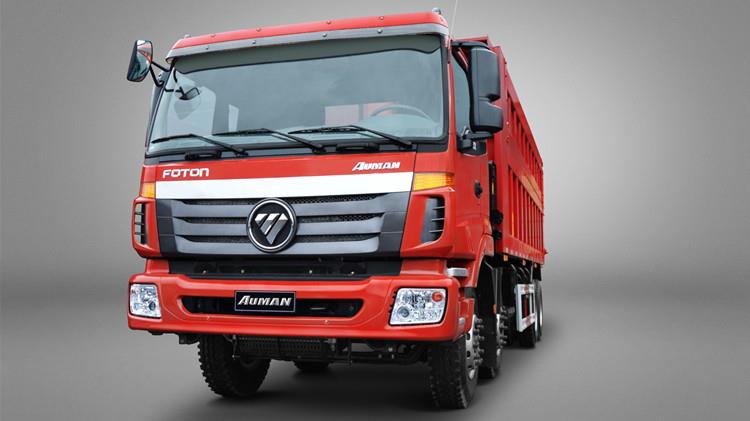

Foton 12 wheeler dump truck feature a classic powertrain and advanced technologies, which includes the world’s leading transmissions and engines. Foton 8x4 dump truck has proven to be extremely reliable. Foton 12 wheeler dump truck is recommended for mining projects or sediment transport operations. Auman ETX dump trucks are powered By Weichai Engines.
10-Liter to 12-Liter diesel engines (270-380 hp) are mature, tried-and-tested technology. ETX foton dump truck handle well in various working conditions. Weichai WD series engines also perform at a lower RPM and with high torque, have quick acceleration and great climbing performance. Completely meets Euro-II emissions standards.
Foton 12 Wheeler Dump Truck Auman ETX - Foton Commercial Vehicles
Foton 12 Wheeler Dump Truck Auman ETX - Foton Commercial Vehicles
Drive type: 8x4
Wheel base(mm):1800+3250+1350
Overall dimension(mm): 9780*2495*3400
GVW(Kg): 41000
Engine:
Model: WD12.336
Max power (ps/rpm): 336(2200)
Max torque (Nm/rpm): 1350(1300-1500)
Displacement (ml): 11596
Emission standard: Euro Ⅱ
Gearbox: FAST, 12JSD160T(PTO)
Front axle: 7.5T
Rear axle model: 13T double reduction
Quantity of leaf spring: 12/14
Standard configuration:
Air suspension seat
Seat heater
Lumbar support to the driver
Adjustable steering wheel
Safety:
Three points safety belt
Automatic clearance adjustment arm,tachometer
Service brake: Dual circuit compressed air brake
Parking brake: Spring energy, compressed air operating on rear wheels
ABS: Provided
Chassis:
Big tool box
Reinforced rim (with HQ mark)
Three in one lock (Ignition switch, door and fuel tank)
Type specification: 12.00-20
Number of tyres: 13+1
1. Reliable Transmission
FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.
2. Powerful
Auman ETX foton 12 wheeler dump truck price come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All ETX dump trucks meet the requirements of harsh off-highway dump truck working conditions, with power output ranging from 270-440 hp. Foton ETX dump trucks feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.
3. High Payload Capacity of Frame
Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. Foton etx 8x4 dump truck has a higher load capacity than other similar in-class trucks.
4. Large Clearance
Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.
5. High Payload Capacity of Suspension
Suspension is strengthened with gusset plate to reduce frame flex.
Double U-Bolts are used to support the higher load.
Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.
6. Mature Powertrain
ETX dump trucks are equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. Foton dump truck price has proven reliable on the market and are a favorite choice among customers. ETX dump trucks are high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.
