ETX foton dump truck handle well in various working conditions. Weichai WD series engines also perform at a lower RPM and with high torque, have quick acceleration and great climbing performance. Completely meets Euro-II emissions standards.
Foton 8x4 dump truck feature a classic powertrain and advanced technologies, which includes the world’s leading transmissions and engines. Foton Auman etx 8x4 dump truck has proven to be extremely reliable. Foton 12 wheeler dump truck is recommended for mining projects or sediment transport operations. ETX dump trucks are powered By Weichai Engines.
10-Liter to 12-Liter diesel engines (270-380 hp) are mature, tried-and-tested technology. ETX foton dump truck handle well in various working conditions. Weichai WD series engines also perform at a lower RPM and with high torque, have quick acceleration and great climbing performance. Completely meets Euro-II emissions standards.

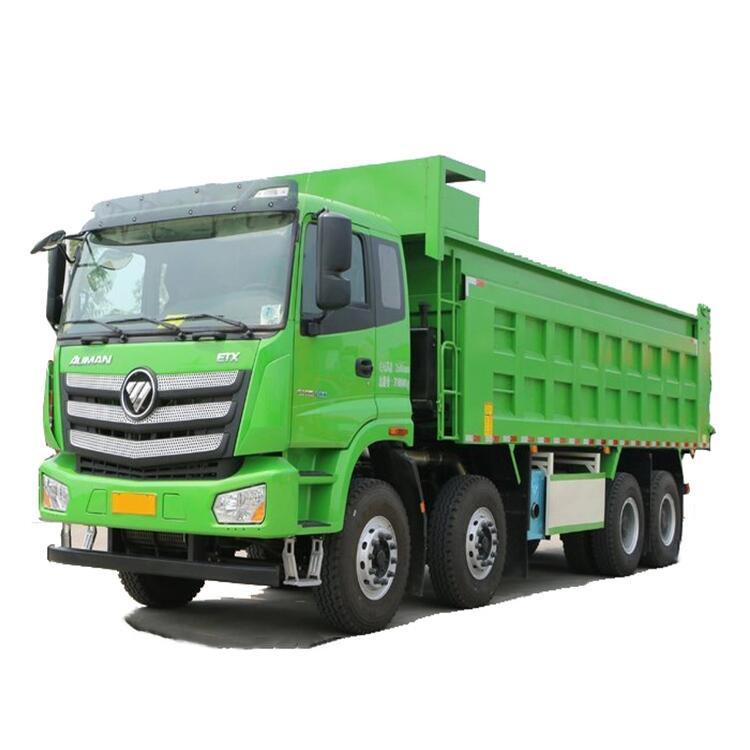

Foton Auman ETX 8x4 Dump Truck for Sale Near Me in Nigeria
Foton Auman ETX 8x4 Dump Truck for Sale Near Me in Nigeria
Drive form: 8x4
Wheelbase: 1800+3300+1350mm
Engine: Weichai WP12 375E50
Transmission case: Fast 12jsd180ta
Rear axle speed ratio: 5.92
Body length: 9.68 meters
Body width: 2.495 meters
Vehicle height: 3.58 meters
Vehicle weight: 14.71 tons
Rated load: 16.16 tons
Total mass: 31 tons
Tonnage class: Heavy truck
Approach angle: 18 degrees
Departure angle: 24 degrees
Number of cylinders: 6
Fuel type: diesel
Displacement: 11.596L
Emission standard: National five
Maximum horsepower: 375 HP
Maximum output power: 276kW
Maximum torque: 1800N·m
Maximum torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine type: In line, water-cooled, six cylinder, electronically controlled high-pressure common rail SCR
Container length: 6.5 meters
Container width: 2.35 meters
Container height: 1.5 meters
Forward gear: 12th gear
Number of reverse gears: 2
Tire specification: 12.00R20
Number of tires: 12
Tank capacity: 350L
Front axle Description: 9T
Allowable load of front axle: 6500/6500kg
Rear axle Description: 16t Benz
Allowable load of rear axle: 18000 (two axle group) kg
Number of springs: 10/10/12
1. Reliable Transmission
FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.
2. Powerful
ETX foton 12 wheeler dump truck price come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All ETX dump trucks meet the requirements of harsh off-highway dump truck working conditions, with power output ranging from 270-440 hp. Foton 8x4 dump trucks feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.
3. High Payload Capacity of Frame
Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. Foton auman etx 8x4 dump truck has a higher load capacity than other similar in-class trucks.
4. Large Clearance
Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.
5. High Payload Capacity of Suspension
Suspension is strengthened with gusset plate to reduce frame flex.
Double U-Bolts are used to support the higher load.
Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.
6. Mature Powertrain
ETX dump trucks are equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. Foton dump truck price has proven reliable on the market and are a favorite choice among customers. ETX dump trucks are high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.
