4 Axle Semi Tipper (U Shape)

4 Axle Semi Tipper (U Shape)

17600 USD

The 4 axle semi tipper trailer for sale could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.

SKU: 4 Axle Semi Tipper (U Shape)
MPN: FOTON66326
Brand: Tipper Semi Trailer

Semi Tipper Trailer for Sale:

The semi tipper trailer for sale could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. The semi tipper trailer could be used for nearly 10 years.

4 axle tipper trailer has different load capacities: 28 cubics, 30 cubics, 33 cubics, 35 cubics, We can customize the tipper trailers according to your special need.

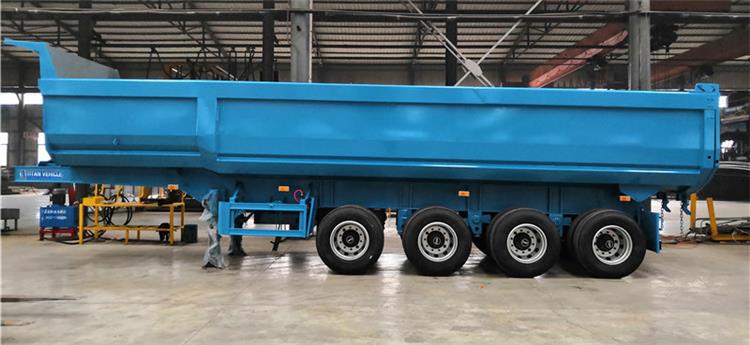

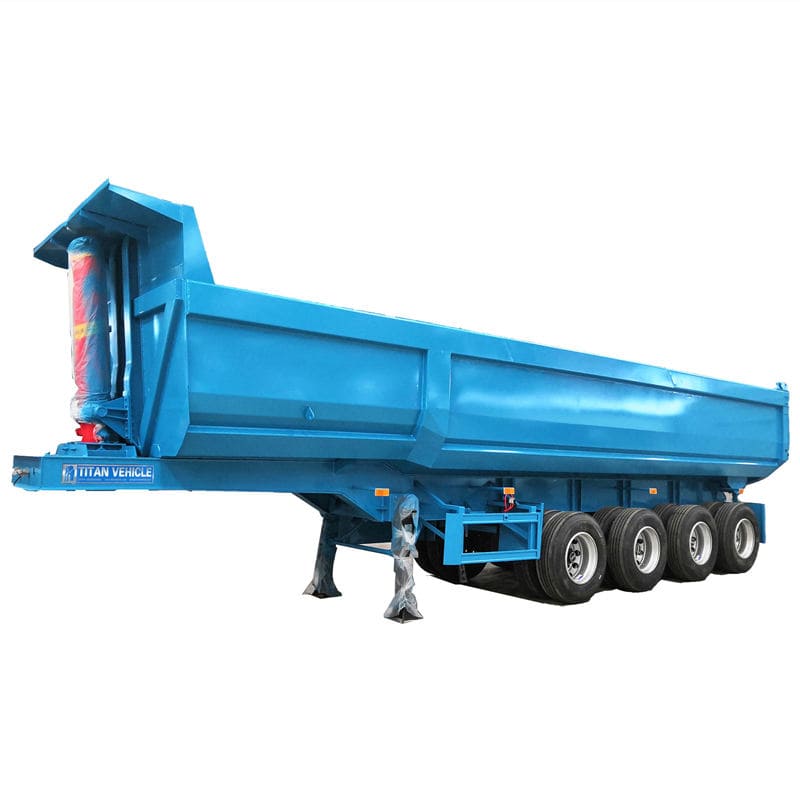

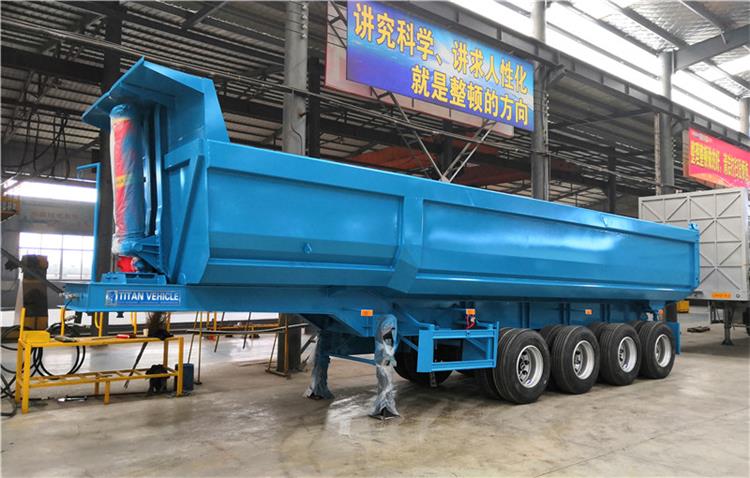

4 Axle 33cbm Semi Tipper Trailer for Sale

4 Axle 33cbm Semi Tipper Trailer for Sale

4 Axle 33cbm Semi Tipper Trailer for Sale

4 Axle 33cbm Semi Tipper Trailer for Sale

4 Axle 33cbm Semi Tipper Trailer for Sale



Specifications of 4 axle tipper trailer:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 33cbm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 4 axles, 13T/16T, FUWA/BPW Brand

Rim: 8.0-20 or 9.00-20

Tire: 16units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Toolbox: 1 set



Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
