Foton Heavy Truck Supplier

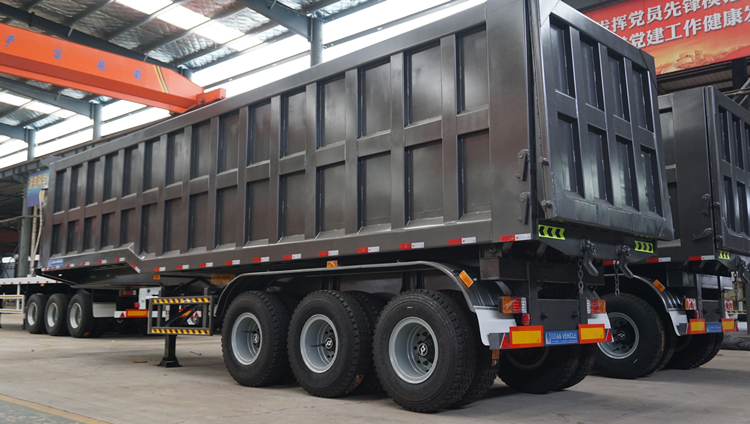

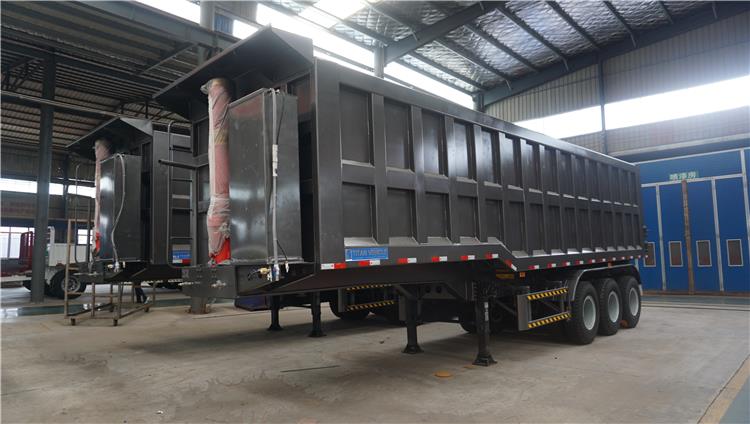

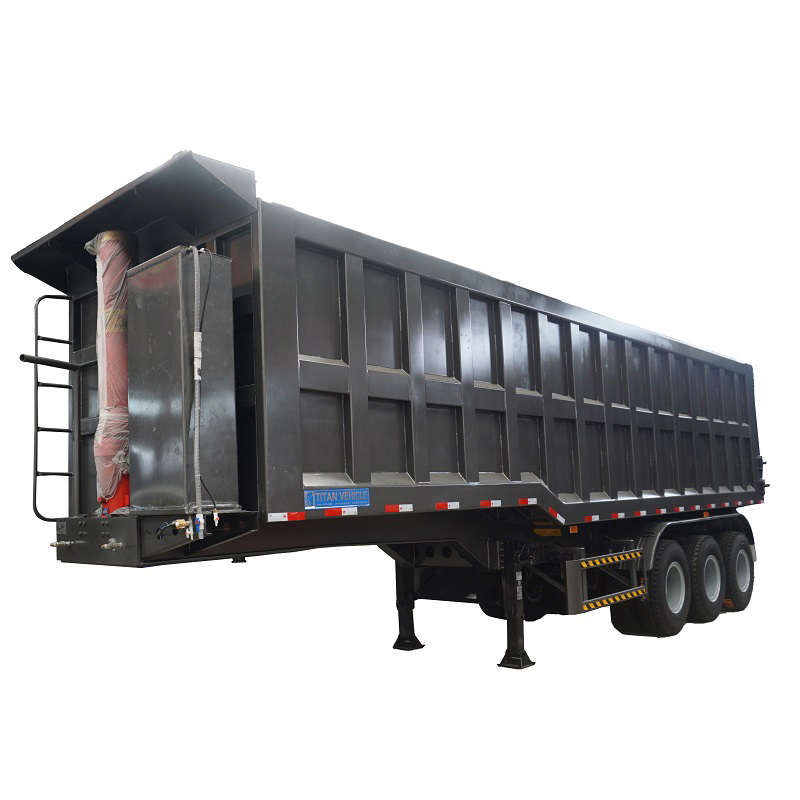

3 Axle 60 Ton Tipper Trailer

3 Axle 60 Ton Tipper Trailer

17200 USD

3 axle 60 ton tipper trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the tipper trailer for sale.

SKU: 3 Axle 60 Ton Tipper Trailer
MPN: FOTON66325
Brand: Tipper Semi Trailer

3 Axle Tipper Trailer Description:

3 axle tipper trailer for sale is a heavy duty 60 ton tipper trailer that usually lifts when dumping its hall in a chosen location. Tipper trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

3 axle 60 ton tipper trailer with 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the tipper trailer for sale.

3 Axle 60 Ton Tipper Trailer for Sale Manufacturers

3 Axle 60 Ton Tipper Trailer Manufacturers

3 Axle 60 Ton Tipper Trailer for Sale Manufacturers

3 Axle 60 Ton Tipper Trailer Manufacturers

3 Axle 60 Ton Tipper Trailer for Sale Manufacturers



Specification of 60 ton tipper trailer:

Dimension: 9300mmx2500mm x3700mm (inside dimension)

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 38 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Advantages of tipper trailer for sale:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper trailer, which has a stronger carrying capacity, it is not easy to damage.

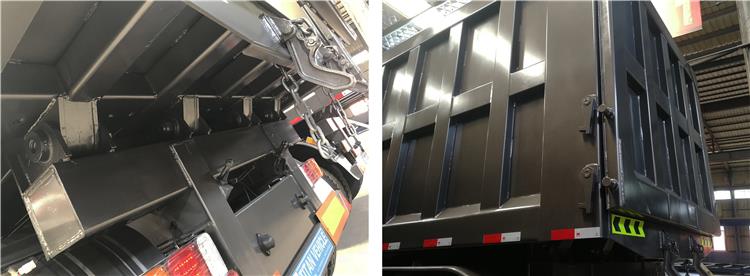

3. 3 axle tipper trailer with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.



Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
