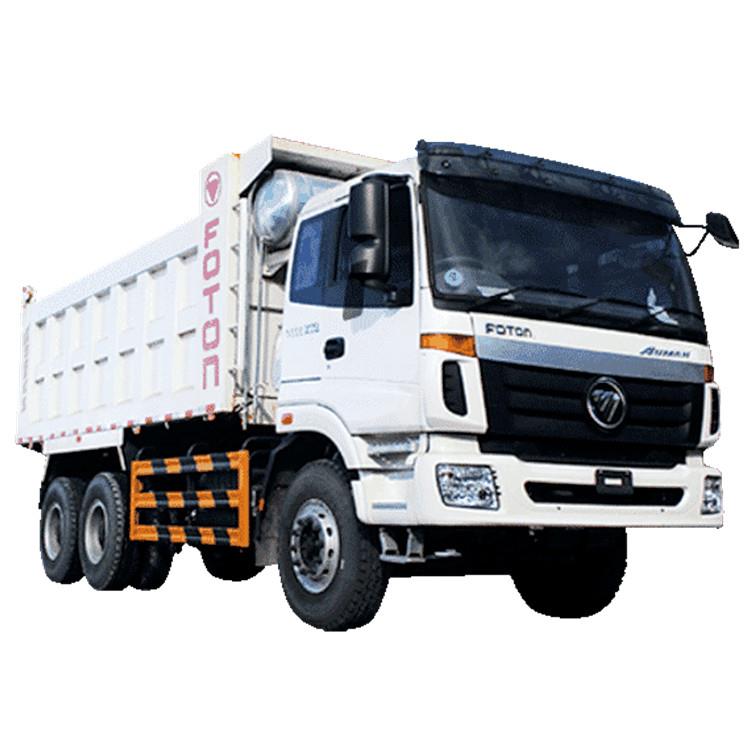

Foton ETX 10 Wheeler Tipper Truck

Foton ETX 10 Wheeler Tipper Truck

USD
SKU: Foton ETX 10 Wheeler Tipper Truck
MPN: FOTON66207
Brand: Foton

Foton 10 Wheeler Tipper Truck Description:

Foton ETX tipper truck feature a classic powertrain and advanced technologies, which includes the world’s leading transmissions and engines. Foton etx 10 wheeler tipper truck for sale has proven to be extremely reliable. Foton 10 wheeler dump truck is recommended for mining projects or sediment transport operations. Price of foton trucks are powered By Weichai Engines.

10-Liter to 12-Liter diesel engines (270-380 hp) are mature, tried-and-tested technology. ETX foton dump truck handle well in various working conditions. Weichai WD series engines also perform at a lower RPM and with high torque, have quick acceleration and great climbing performance. Completely meets Euro-II emissions standards.

Foton Auman ETX 6x4 10 Wheeler Dump Truck Price

Price of Foton ETX 10 Wheeler Tipper Truck for Sale

Foton Auman ETX 6x4 10 Wheeler Dump Truck Price

Price of Foton ETX 10 Wheeler Tipper Truck for Sale

Foton Auman ETX 6x4 10 Wheeler Dump Truck Price

Front and Rear of the Foton ETX Tipper Truck for Sale



Specification of Foton ETX Tipper Truck:

Drive type: 6X4

Wheel base(mm): 3825+1350

Overall dimension(mm): 8472*2495*3400

Curb weight(Kg): 12110

Load capacity(Kg): 30000

Cabin: Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C

Engine:

Model: ISGe4-350

Max.output (kw/HP): 257/350

Max.torque (N•m): 1800@1000RPM

Displacement (ml): 10500

Emission standard: Euro IV

Gear box: Manual,12 forward & 2 reverse gears

Driving axle: Load capacity 18000Kg

Front axle: Steering axle,load capacity 7000Kg

Quantity of leaf spring: 11/14

Standard configuration:

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Safety:

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake: Dual circuit compressed air brake

Parking brake: Spring energy, compressed air operating on rear wheels

ABS: Provided

Chassis:

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification: 11.00R20 18PR

Number of tyres: 10+1

Max.vehicle speed(km/h): 81

Box dimension(mm): 5600X2300X1200



Advantages of foton tipper truck:

1. Reliable Transmission

FAST-brand transmissions are small, lightweight and come in nine-speed or twelve-speed. FAST-brand transmissions have a main-box and an auxiliary-box twin-countershaft structure. FAST-brand transmissions are efficient and support high load capacity with low gear ratios; in addition, gears are fully synchronized, so getting into gear or shifting is simple.

2. Powerful

ETX foton 10 wheeler tipper truck price come equipped with 10-Liter to 12-Liter large displacement Cummins or Weichai engines, and engine displacement is larger than other in-class trucks. All foton tipper truck for sale meet the requirements of harsh off-highway tipper truck working conditions, with power output ranging from 270-440 hp. Foton ETX tipper trucks feature FAST-brand twelve-speed, Synchromesh twin countershaft transmissions. FAST-brand Syncromesh transmissions are small and lightweight with torque output ranging from 1800-2000 Nm. FAST-brand Syncromesh transmissions, with a simple design, have few parts that require maintenance.

3. High Payload Capacity of Frame

Frame is made of a high-strength, single mold steel alloy with a width of up to 865 mm. Beams on the inside and outside are 8 mm + 7 mm thick and cannot be easily deformed. Foton etx 10 wheeler tipper truck has a higher load capacity than other similar in-class trucks.

4. Large Clearance

Ground clearance is 320 mm high, 20mm higher than similar in-class trucks. High mounted front steel bumpers protect against unwieldy roads, even when under full load.

5. High Payload Capacity of Suspension

Suspension is strengthened with gusset plate to reduce frame flex.

Double U-Bolts are used to support the higher load.

Frame is strengthened with longer gusset plates and multiple layers of rivets, thus increasing the number of contact points with the subframe.

6. Mature Powertrain

ETX tipper trucks are equipped with a classic powertrain and advanced technologies. Vehicles feature powerful Weichai engines, high-torque FAST transmissions as well as ANKAI rear axles. Foton tipper truck price has proven reliable on the market and are a favorite choice among customers. Price of foton trucks are high performance and have been proven reliable. The standard parts are easily replaceable, thus lowering maintenance costs.
