A customer from Tanzania bought a foton dump truck before, and for some reason, the customer urgently needs a foton truck tractor. Customers contact us immediately. Of course, we are the agent of foton, providing customers with preferential solutions, customers bought Foton auman gtl tractor truck without hesitation.

We also have many Tanzanian households who buy foton dump truck and foton tractor truck from our company, so customers also trust us very much. Below is the upcoming foton auman gtl tractor truck.

At present, the cab of Foton auman gtl tractor truck in our country has been flattened. In order to facilitate the maintenance of the engine, the cab is required to be turned forward.

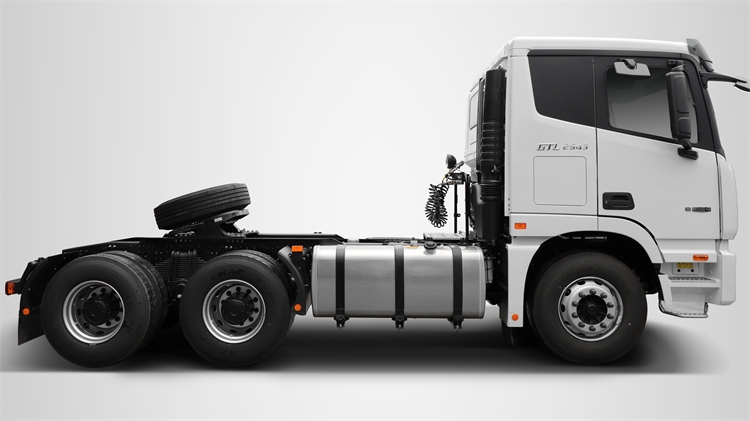

Foton Auman GTL Tractor Truck for Sale in Tanzania

In order to increase the turning speed, currently Foton auman gtl tractor truck generally adopts electric/manual hydraulic turning mechanism. Compared with the torsion bar type turning mechanism, the electric/manual hydraulic turning mechanism has a double insurance structure, which greatly enhances safety and reliability, and is applicable to trucks above 10~50t; compared with the ordinary hydraulic turning mechanism, it uses electric Instead of manual, the turning cycle is greatly shortened and the efficiency is improved.

The device integrates the electric manual turning mechanism together, uses the plunger pump to drive the hydraulic cylinder, and changes the movement direction of the cylinder through the reversing valve, so that the cab can turn around the front support point. The whole lifting process of Foton auman gtl tractor truck is about 30s, and it takes less than 20s to descend.

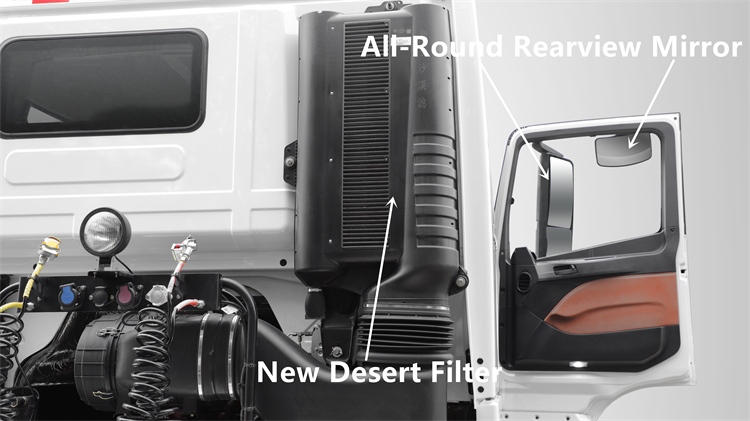

Foton Auman GTL Tractor Truck for Sale in Tanzania

A hand pump works the same as an electric pump, the only difference is that a lever is used to push up and down the plunger of the hand pump to pump the oil. When the manual pump is working, the electric pump is locked under the action of the one-way valve.

The electric/manual hydraulic turning mechanism is small in size, light in weight, and has a large load-bearing pressure, which makes vehicle assembly and maintenance safer and easier.

The device is installed under the rear of the cab, where one end of the hydraulic cylinder is installed on the main beam of the Foton auman gtl tractor truck cab, and the other end is installed on the frame longitudinal beam through the tripod. The oil pump device is installed in the combined space between the cab and the compartment for easy operation.

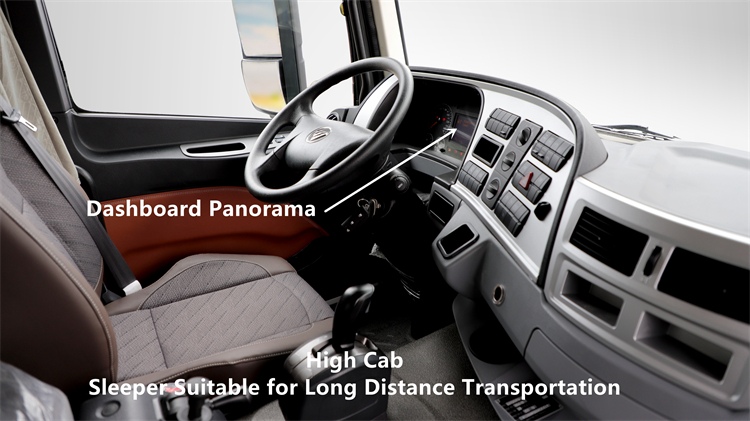

Foton Auman GTL Tractor Truck for Sale in Tanzania

The cab of Foton truck is flexibly connected to the frame by a locking mechanism and spring. At this time, the pump has no power source and is in a non-working state.

When it is confirmed that the cab can be lifted safely, loosen the safety pin, turn the handle of the reversing valve to the "up" position, and then start the motor or manually drive the overturn pump to lift the cab to the desired position, and then turn off the motor. And insert the safety device.

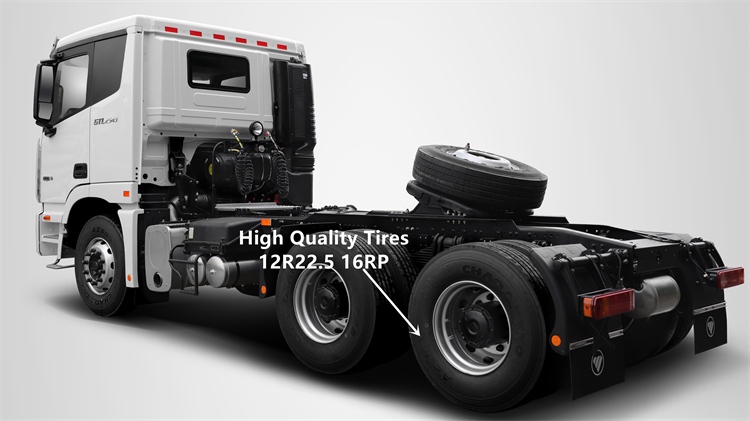

Foton Auman GTL Tractor Truck for Sale in Tanzania
